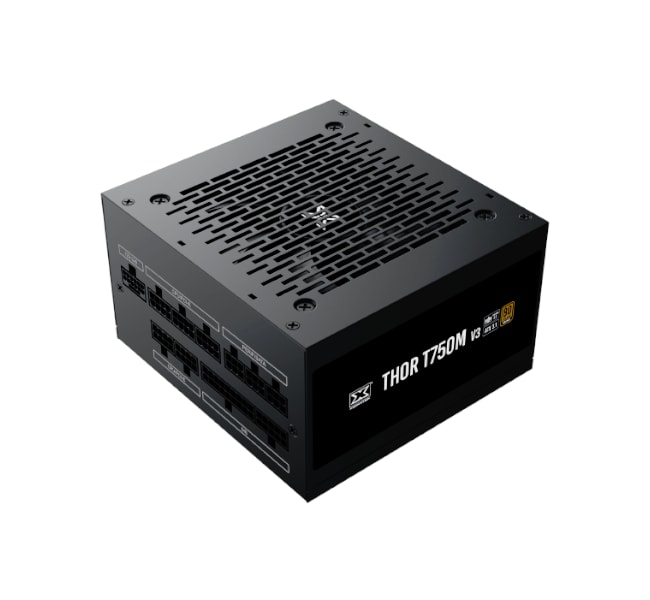

Thor T750M V3 80 Plus Bronze
XIGMATEK
د.إ 1د.إ 1
Delivered by 1 days
Native ATX 3.1 support and 750W continuous output handle PCIe 5.1 GPUs easily, maintaining stable power with >85% efficiency.
Description
• 750W Continuous Power Output • 80 PLUS Bronze Efficiency • ATX 3.1 / PCIe Gen 5.1 Ready • ATX Form Factor • DC-to-DC Conversion Topology
1
In Stock
SPECIFICATIONS
DC Output Rail Breakdown
+12V RailSingle Rail Design
+12V Max Output62.5 Amps (A) / 750 Watts (W)
+5V Max Output20 Amps (A)
+3.3V Max Output20 Amps (A)
+5V and +3.3V Combined Max Output130 Watts (W)
Cabling and Connectors
ModularityFully Modular
Cable StyleFlat Black Cables
Motherboard Connectors1x 20+4 Pin ATX 2x 4+4 Pin EPS/CPU
Graphics Card (PCIe) Connectors1x 12V-2x6 Connector (for modern high-power GPUs, max 600W) 4x 6+2 Pin PCIe Connectors (for traditional 8-pin/6-pin GPU power)
Peripheral Connectors6x SATA Power Connectors 6x Molex (L4P) Connectors
Cooling and Protection
Fan Size120mm
Fan ControlIntelligent Thermal Control (Silent/Eco-Mode capable)
Safety ProtectionsOVP, OPP, UVP, SCP (Over Voltage, Over Power/Load, Under Voltage, Short Circuit)
